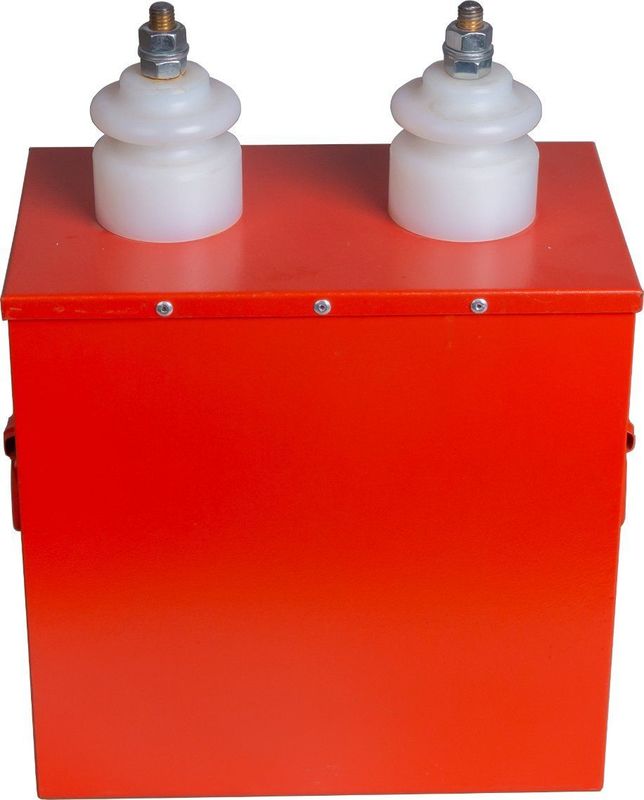

40kv 2UF Pulse Energy Storage Capacitor for Sale

Name: 40kv 2UF Pulse Energy Storage Capacitor for Sale
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHCC-2/40
Price: 1,050.00 USD
Availability: InStock

Produktdetails:

Herkunftsort:	CHINA
Markenname:	XZH Test
Zertifizierung:	CE/ISO
Modellnummer:	XHCC-2/40

Ausführliche Information

Herkunftsort:

CHINA

Markenname:

XZH Test

Zertifizierung:

CE/ISO

Modellnummer:

XHCC-2/40

Hervorheben:

High Light

Hervorheben:

40kv pulse energy storage capacitor

2UF high voltage capacitor

capacitor for cable fault locator

Trading Information

Min Bestellmenge:

1Unit

Verpackung Informationen:

Holzkiste

Lieferzeit:

5-8Work Tage

Zahlungsbedingungen:

T/t

Versorgungsmaterial-Fähigkeit:

2000Unit/Jahr

Produkt-Beschreibung

XHCC-2/40

Model NO.

XHCC-2/40

Weight

27kg

Transport Package

Wooden Case

Specification

28*24*36

Trademark

XZH TEST

Origin

Shaanxi

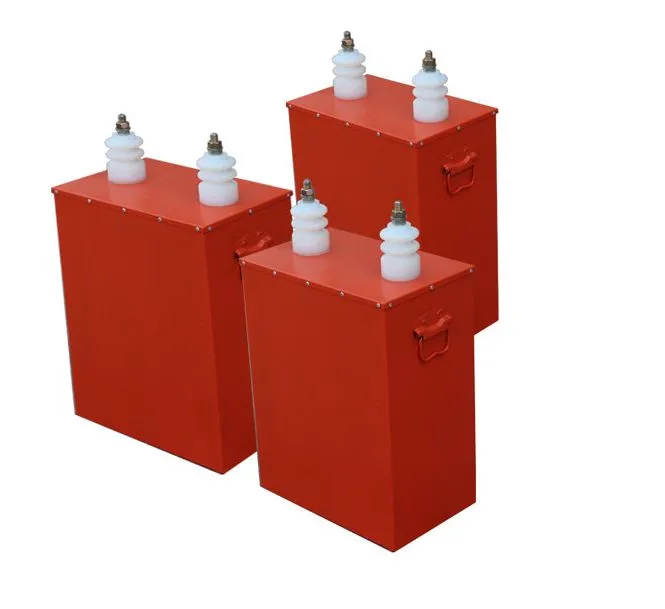

40kv 2UF Pulse Energy Storage Capacitor for Sale 0

The pulse capacitor stores the charging energy of the small-power power supply to the capacitor within a certain time interval, and releases the stored energy quickly within a very short time interval at a certain moment of need, forming a strong impact current and a strong impact power . It is mainly used in high-voltage impulse discharge test, high-energy physics, oscillation circuit, geological prospecting and other fields.

Ambient temperature: -20~+50ºC;
Altitude: ≤2000 meters, if it is greater than 2000 meters, it will be explained separately;
Capacitance error: ±5%;
Voltage resistance between poles: 1.1~1.5Un 2s Pole to shell: 2Un 60s;
Insulation resistance: RC≥7500MΩ·uF;
Loss: ≤0.01 (1kHz).

Model Description
Example: XHCC-4/35 pulse capacitor
1. 4--Rated capacitance 4uF
2. 35--Rated voltage level 35kV

N.o	model	Rated voltage	Rated capacity	Interpolar withstand voltage	Application
01	3/2000	3kV	2000uF	3.6kV	Impulse discharge
02	6.5/100	6.5kV	100uF	3.6kV	Impulse discharge
03	6.5/200	6.5kV	200uF	7.5 kV	Impulse discharge
04	6.5/500	6.5kV	500uF	7.5 kV	Impulse discharge
05	15/8	15kV	8uF	17.5 kV	Impulse discharge
06	15/8*2	15kV	8uF	17.5 kV	Impulse discharge
07	15/8*3	30kV	2uF	34.5 kV	Impulse discharge
08	35/2	35kV	2uF	39.5 kV	Impulse discharge
09	35/4	35kV	4uF	39.5 kV	Impulse discharge
10	30/4	30kV	4uF	34.5 kV	Impulse discharge
11	40/4	40kV	4uF	45 kV	Impulse discharge
12	40/6	40kV	6uF	45 kV	Impulse discharge
13	100/1	100kV	1uF	110 kV	Impulse discharge

Precautions and Common Faults
1. It is strictly forbidden to hit and collided the high-voltage pulse capacitor, otherwise the internal film will be easily damaged.
2. When using Pulse Energy Storage Capacitors, please read the instructions and the content of the capacitor label to prevent overvoltage use.
3. During use, pay attention to the withstand voltage and safety distance of the connecting wire.
4. After the test is completed, the high voltage end must be fully discharged.
5. During use, if there is abnormal sound inside the capacitor, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If there are bulges or bulges on the capacitor shell, it is recommended to stop using it, as there is a risk of deterioration of the internal material and insulation reduction.

40kv 2UF Pulse Energy Storage Capacitor for Sale 1

40kv 2UF Pulse Energy Storage Capacitor for Sale 2
