Energized Charged Direct Finder Cable Fault Locator for Accurate Detection

Name: Energized Charged Direct Finder Cable Fault Locator for Accurate Detection
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHSB505B
Price: 1,050.00 USD
Availability: InStock

Produktdetails:

Herkunftsort:	Xi'an
Markenname:	XZH TEST
Zertifizierung:	ISO
Modellnummer:	XHSB505B

Ausführliche Information

Herkunftsort:

Xi'an

Markenname:

XZH TEST

Zertifizierung:

ISO

Modellnummer:

XHSB505B

Hervorheben:

High Light

Hervorheben:

Energized Cable Fault Locator

Charged Cable Fault Locator

Direct Finder Cable Fault Locator

Trading Information

Min Bestellmenge:

1 Satz

Verpackung Informationen:

Holzverpackung

Lieferzeit:

5-8 Werktage

Zahlungsbedingungen:

T/T

Versorgungsmaterial-Fähigkeit:

3000 Einheiten/Jahr

Produkt-Beschreibung

XHSB505B

The Energized Cable Identifier is a charged, direct finder solution designed for efficient cable identification in industrial applications.

Instrument Layout and Description

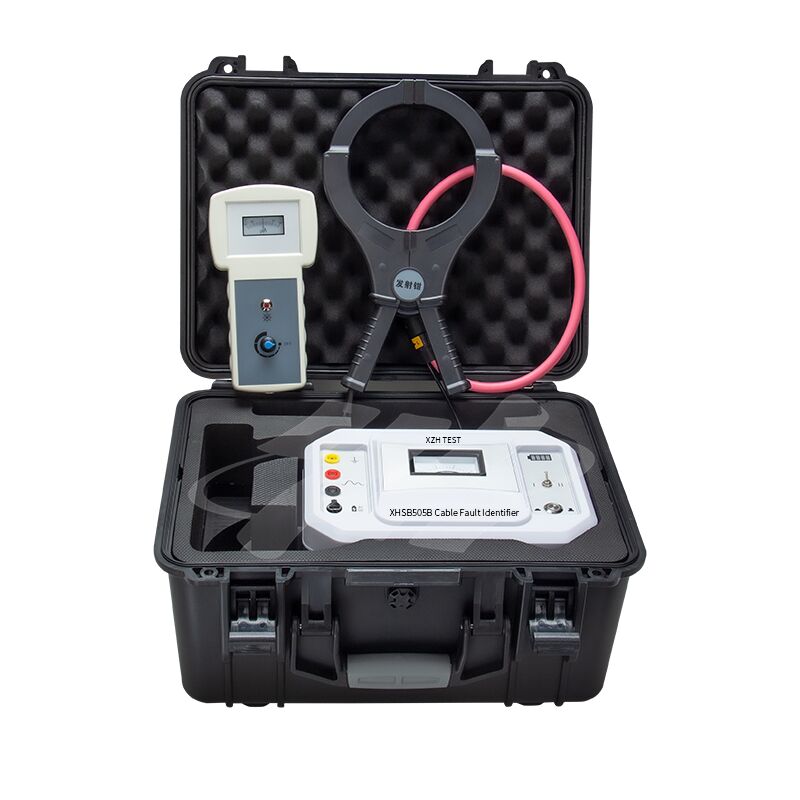

This instrument consists of a transmitter, transmitter clamp, receiver clamp, and handheld receiver.

Transmitter Panel:

Energized Charged Direct Finder Cable Fault Locator for Accurate Detection 0

1. Grounding Terminal: Safety grounding terminal for the equipment;

2. Positive Output Terminal: Transmitter output positive, connect to the red output wire;

3. Negative Output Terminal: Transmitter output negative, connect to the black output wire;

4. Charging: DC 12V charging port, connect a 12V charger to start charging;

5. Power Switch: Turns the power on/off;

6. Position Switch: "Ⅰ" indicates a non-energized cable; "Ⅱ" indicates an energized cable;

7. Battery Level Indicator: Indicates the battery level in real time when the built-in battery is working;

8. Ammeter: Displays the instantaneous average value of the output current.

Energized Charged Direct Finder Cable Fault Locator for Accurate Detection 1

1. The handheld receiver has an adjustment knob to adjust the received signal strength (clockwise rotation increases signal strength; counterclockwise rotation decreases signal strength; it also has an on/off function).

2. There is a BNC connector on the bottom of the handheld receiver for connecting a receiver clamp to receive signals.

Energized Charged Direct Finder Cable Fault Locator for Accurate Detection 4
