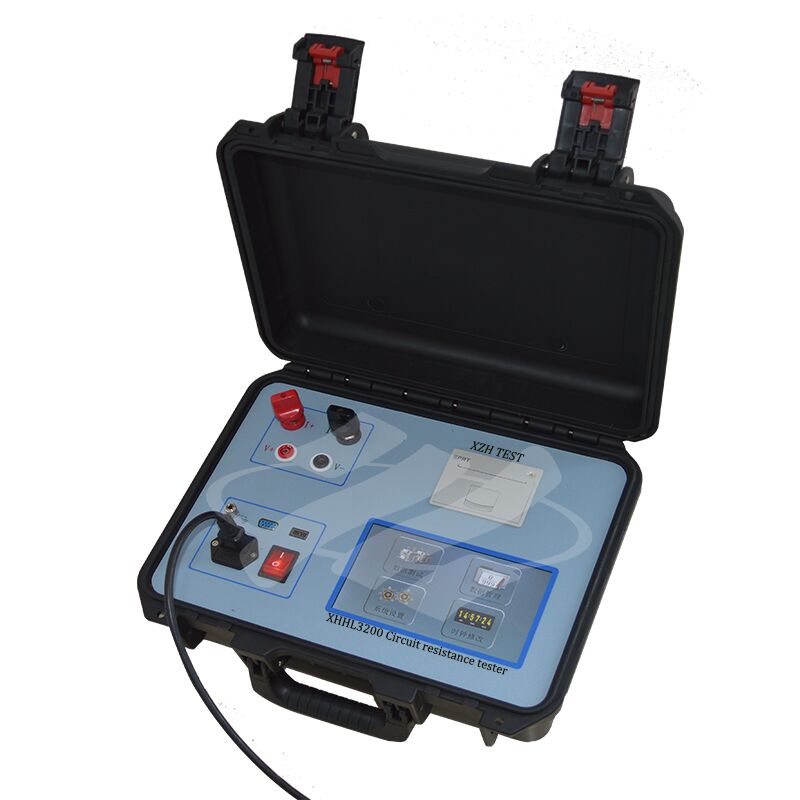

Portable Circuit Resistance Tester with Digital Display

Name: Portable Circuit Resistance Tester with Digital Display
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHL3200
Price: 7,970.00 USD
Availability: InStock

Produktdetails:

Herkunftsort:	Xi'an Shaanxi China
Markenname:	XZH TEST
Zertifizierung:	ISO CE
Modellnummer:	XHHL3200

Ausführliche Information

Herkunftsort:

Xi'an Shaanxi China

Markenname:

XZH TEST

Zertifizierung:

ISO CE

Modellnummer:

XHHL3200

Betriebsart:

Zeitgesteuerter Betrieb oder Dauerbetrieb

Messgenauigkeit:

±(0,5 %+3 Ziffern)

Hervorheben:

High Light

Hervorheben:

Constant Current Output Circuit Resistance Tester

Portable Circuit Breaker Analyzer

Digital Display Contact Resistance Tester

Trading Information

Min Bestellmenge:

1 SATZ

Verpackung Informationen:

Holzverpackung

Lieferzeit:

5-8 Werktage

Zahlungsbedingungen:

T/T

Versorgungsmaterial-Fähigkeit:

3000 Einheiten/Jahr

Produkt-Beschreibung

Product Overview

This professional testing equipment is developed in strict accordance with the new regulatory requirements for preventive tests of electrical power equipment. Its core function is to conduct contact resistance tests on various switchgear devices. For accurate and reliable test results, the equipment requires a test current of at least one hundred amperes (100A) and a continuous current supply time of not less than one minute. In addition to switchgear testing, it can also be widely applied to the resistance measurement of busbars, welded joints, electric wires and cables in power systems.

Portable Circuit Resistance Tester with Digital Display 0

Performance Features

★ Adopts constant current output; the instrument has a high output current and is lightweight;
★ Protective circuit for strong reliability;
★ Features a one-minute test function to meet specified testing requirements;

Portable Circuit Resistance Tester with Digital Display 1

Technical Parameters

☆ Output Current: 100/200A
☆ Operating Mode: Timed operation or continuous operation
☆ Measurement Range: 100A: 0～50mΩ 200A: 0～10mΩ
☆ Resolution: 0.1μΩ
☆ Measurement Accuracy: ±(0.5%+3 digits)
☆ Ambient Temperature: -10℃～50℃ ≤85%RH
☆ Power Supply: AC 220V±10% 50±1Hz
