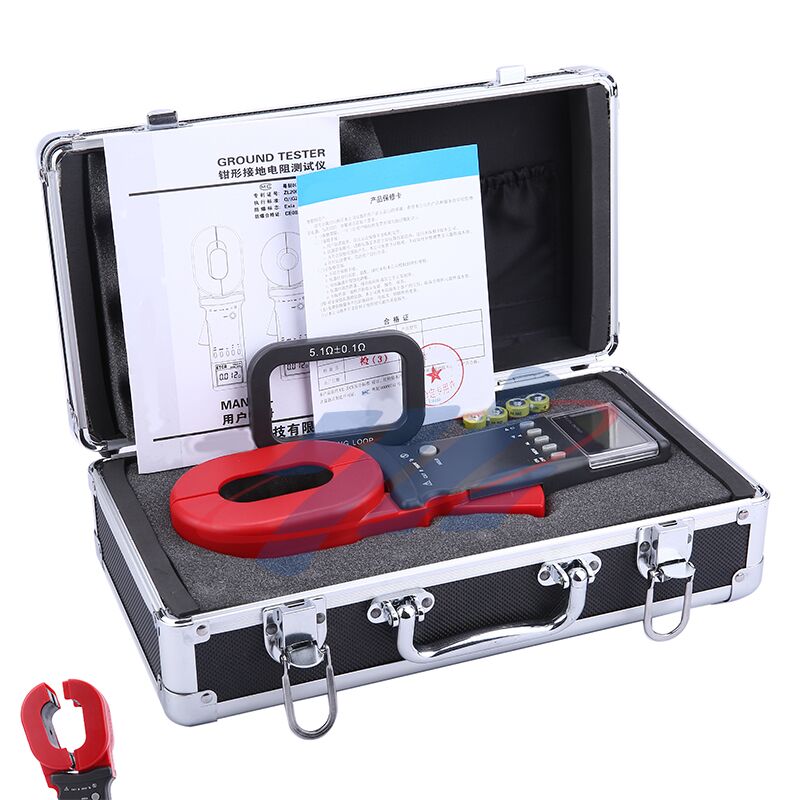

Single-Jaw Portable Ground Resistance Tester

Name: Single-Jaw Portable Ground Resistance Tester
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: Xhdq703
Price: 440.00 USD
Availability: InStock

Produktdetails:

Herkunftsort:	Xi'an Shaanxi China
Markenname:	XZH TEST
Zertifizierung:	ISO CE
Modellnummer:	Xhdq703

Ausführliche Information

Herkunftsort:

Xi'an Shaanxi China

Markenname:

XZH TEST

Zertifizierung:

ISO CE

Modellnummer:

Xhdq703

Stromversorgung:

6 V DC (4 x AA-Alkalibatterien)

Hervorheben:

High Light

Hervorheben:

Single-Jaw Ground Resistance Tester

High Precision Ground Tester

Portable Earth Resistance Tester

Trading Information

Min Bestellmenge:

1 SATZ

Verpackung Informationen:

Holzverpackung

Lieferzeit:

5-8 Werktage

Versorgungsmaterial-Fähigkeit:

3000 Einheiten/Jahr

Produkt-Beschreibung

Product Overview

The XHDQ703 Single-jaw Earth Resistance Tester is widely applied to measure earth resistance and loop resistance for electrical equipment in power, meteorology, oilfield, construction and industrial sectors. When measuring earthed systems with loops, it requires no disconnection of earth down-leads or auxiliary electrodes. This tester is capable of detecting earth faults that cannot be measured by traditional methods and is suitable for scenarios where conventional measurement approaches are inapplicable. The XHDQ series clamp-on earth resistance testers measure the combined value of earth electrode resistance and earth lead resistance.

Performance Features

★Functions: Earth resistance test, loop resistance test;

★Start-up time: Self-test completed in only 0.5 seconds, finished instantly upon power-on;

★Automatic interference signal identification and automatic gear shifting;

★Acousto-optic alarm, equipped with RS232 interface;

Single-Jaw Portable Ground Resistance Tester 0

Technical Specifications
☆ Power Supply: 6V DC (4 x AA alkaline batteries)
☆ Resistance Range: 0.01 – 1200 Ω; Accuracy: ±1% ±0.01 Ω; Resolution: 0.001 Ω
☆ LCD Display: 4-digit digital LCD
☆ Data Storage: 99 sets
☆ Operating Temperature & Humidity: -20°C – 55°C; 20% RH – 90% RH
☆ Jaw Dimensions: 65 mm × 32 mm
☆ Jaw Opening: 32 mm
