Transformer Characteristic Tester for Capacity and Loss Measurement

Name: Transformer Characteristic Tester for Capacity and Loss Measurement
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHTX1318
Price: 4,115.00 USD
Availability: InStock

Produktdetails:

Herkunftsort:	China
Markenname:	XZH TEST
Zertifizierung:	CE/ISO
Modellnummer:	XHTX1318

Ausführliche Information

Herkunftsort:

China

Markenname:

XZH TEST

Zertifizierung:

CE/ISO

Modellnummer:

XHTX1318

Hervorheben:

High Light

Hervorheben:

transformer capacity tester with warranty

transformer loss measurement device

transformer characteristic tester for diagnostics

Trading Information

Min Bestellmenge:

1 Einheit

Verpackung Informationen:

Holzverpackungen

Lieferzeit:

5-8 Arbeitstage

Zahlungsbedingungen:

t/t

Versorgungsmaterial-Fähigkeit:

1.000 Einheiten pro Jahr

Produkt-Beschreibung

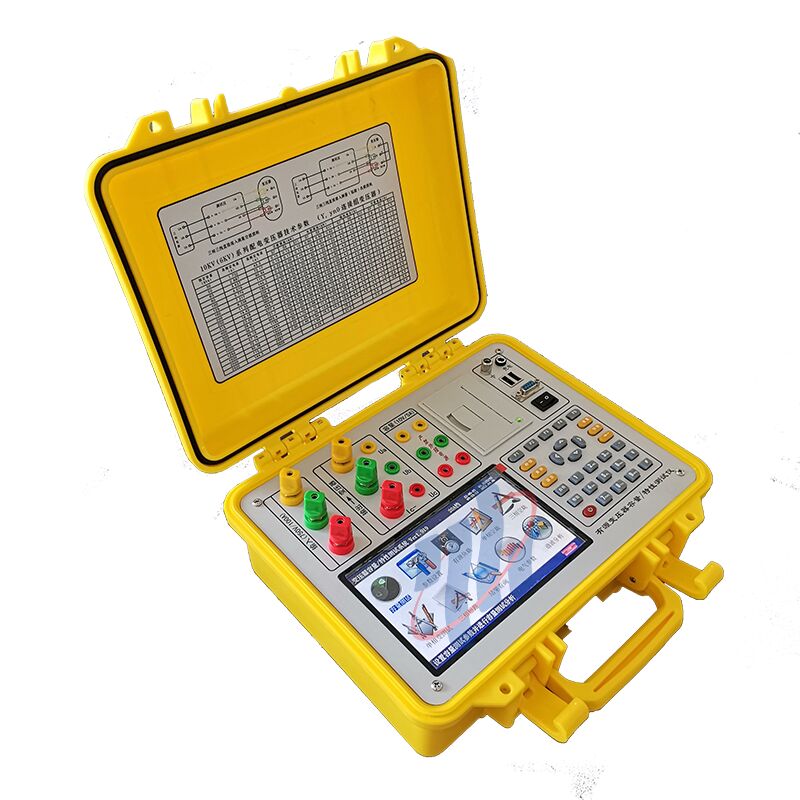

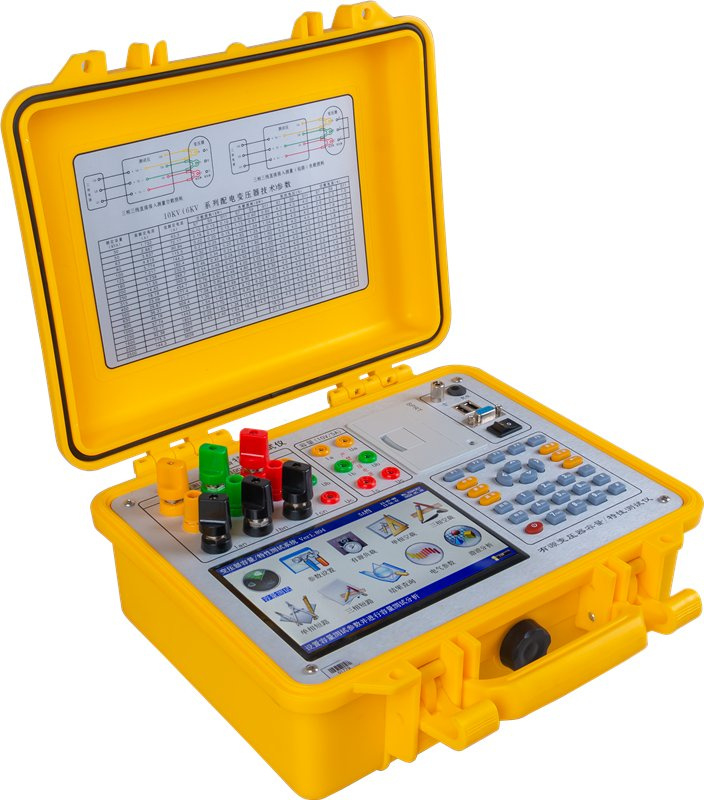

Transformer Characteristic Tester

Easy and Convenient Testing and Recording of Power Frequency Parameters

The XHTX1318 series transformer characteristic tester is a multifunctional measuring instrument that combines the capabilities of both transformer capacity testers and transformer characteristic parameter testers. This advanced device accurately measures power frequency parameters including capacity, type, no-load current, no-load loss, short-circuit (load) loss, and impedance voltage for various transformers.

Key Features

Accurate measurement of capacity for various distribution transformers
Measurement of no-load current, no-load loss, short-circuit voltage, and short-circuit (load) loss
Automatic range switching with wide test voltage and current ranges
Automatic wiring verification with three-phase voltage and current vector display
Full current load testing for transformers below 1000KVA
One-third current load testing for transformers below 3150KVA with automatic conversion to rated current parameters
Automatic correction of all test results
320x240 large screen with high brightness LCD display and bilingual (Chinese/English) interface
User-configurable storage for 40 test sample parameters
Built-in real-time electronic clock for automatic test date/time recording
Integrated thermal printer for immediate result printing
Storage capacity for 500 test results with power-down protection and computer data transfer capability
Compatible with external voltage and current transformers for extended range measurements

Technical Specifications

Environmental Conditions	Temperature: -5°C ~ 40°C Relative humidity: <95% (25°C) Altitude: <2500m External interference: No strong vibration or electromagnetic fields Power supply: 220VAC±10%, 45Hz~55Hz
Test Range	Capacity: - 10KV oil immersed/dry transformer: 30KVA~2500KVA - 35KV oil immersed transformer: 50KVA~31500KVA - 20KV dry type transformer: 50KVA~2500KVA - 35KV dry type transformer: 50KVA~2000KVA Voltage: 0~450V (phase), 0~1000V (line) with auto-ranging Current: 0~100A with auto-ranging Frequency: 45Hz~65Hz
Test Accuracy	Voltage: 20~100V, ±0.2% FS; 100~450V, ±0.2% Current: 0.5~10A, ±0.2% FS; 10~100A, ±0.2% Power: ±0.5% (CosΦ>0.1), ±1.0% (0.02<CosΦ<0.1)
Insulation Strength	≥100MΩ insulation resistance between voltage/current inputs and housing 2KV power frequency withstand voltage between power input and housing for 1 minute
Dimensions	400 × 300 × 220mm
Weight	10kg
